Traditional Strategy

The traditional approach for handling CSP involves singulating the devices on the film frame, then separating them from it. The issue with this method is that while the devices remain highly ordered and easy to handle and test before singulation, once separated from the film frame they become disordered. This requires additional effort to re-order them and verify their orientation for testing and packaging (see figure below).

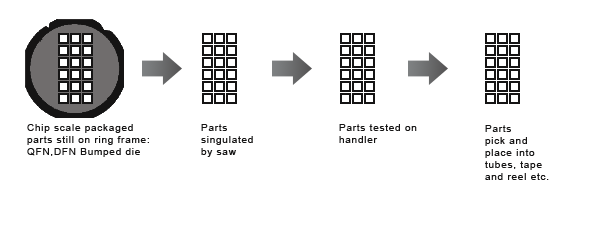

Chip Scale Package Testing on Film Frame

ATMPI has developed proprietary technology for the highly parallel testing of parts after saw. Our technology fixes the die in position after the sawing processes, with minimal x-y displacement. This allows for highly parallel testing of the die at temperatures ranging from -55°C to 200°C on automated test equipment.

Benefits our customers and collaborators both during their engineering and production phases by:

  • Placement of components – Next to probe technology is the only solution for placing discrete components directly next to the device under test for devices. The strategy allows for testing otherwise not possible and for increasing test yield.
  • Increased throughput (UPH) – When testing at high volume, USEA’s  technology dramatically increases the test speed for chip scale, bumped die, and cingulated die on the film frame handler. This is achieved through elimination of jams associated with turret and gravity feed handlers, reduced indexing time between tests, and reduced engineer supervision requirements.
  • Reduced Tooling Costs – The tooling costs for handling chip scale packages on handlers such as turret and gravity feed handlers are avoided when handling the parts on the film frame handler.
  • Reduced Engineering Setup Costs – The engineering time required to implement a change kit on turret and gravity feed handlers is eliminated and replaced with a lower effort alignment procedure on the film frame handler.
  • Tri-Temperature Testing – USEA’s film frame handler strategy allows for the testing of parts at multiple temperatures ranging from -40°C to 85°C.
  • Reduced Test Costs – The increased throughput of testing coupled with lower engineering setup costs and associated NRE results in a lower test cost and higher customer margins.
  • Test After Saw – The mechanical and chemical damage to parts that sometimes occurs during the saw process is screened for using the testing after saw technology.
